Professional Equipment Construction Works Fully Hydraulic System CAT Chassis Piling Rig Soilmec

TR360 Rotary drilling rigs for Max stroke of crowd cylinder 14000mm max drilling depth 95m

TR Series rotary drilling rigs are designed with latest advanced technologycomposed of advantages based on Caterpillar undercarriage, which are themost versatile and used for deep foundation drilling, such as construction of railway, highway, bridge and skyscraper.Maxdepths of piling can reach more than110m and Max Dia.can reach 3.5 mThe rotary drilling rigs can be specially equipped with telescopic friction & interlocking Kelly bar, and casing oscillator for suiting the following applications:Cased bore piles with casing driven adapter through rotary head or optionally by casing oscillator powered by the base carrier itself; Deep bored piles stabilized by drilling fluid or dry hole; Soil Displacement Piling System.

Main Features:

• - High stability and quality original caterpillar base
• - Compact powerful rotary head
• - Emergency mode of operation for engine
• - PCL controller for all electrically actuated functions, colorful LCD display
• - Mast support unit
• - Original Patented driving structure of double motors and double reduces
• - Controlled free-fall main and auxiliary winch
• - Innovative enhanced electro-hydraulic proportional system
• - Ease of transport and quckly assembly

Our advantage

1. Manufactuer of the most complete series of small and medium rotary drilling rig.

2. Series drilling rigs have passed CE& ISO9001. GOST certification.

3. 30 people R&D team with an average of 15 years rich experience.

4. Oversea after-sales sevice and bulid up branchs in Singapore. Middle east. Africa and Euopre.

5. Provide customized services

rotary drilling machine

rotary rig machine

hydraulic rotary drilling rig

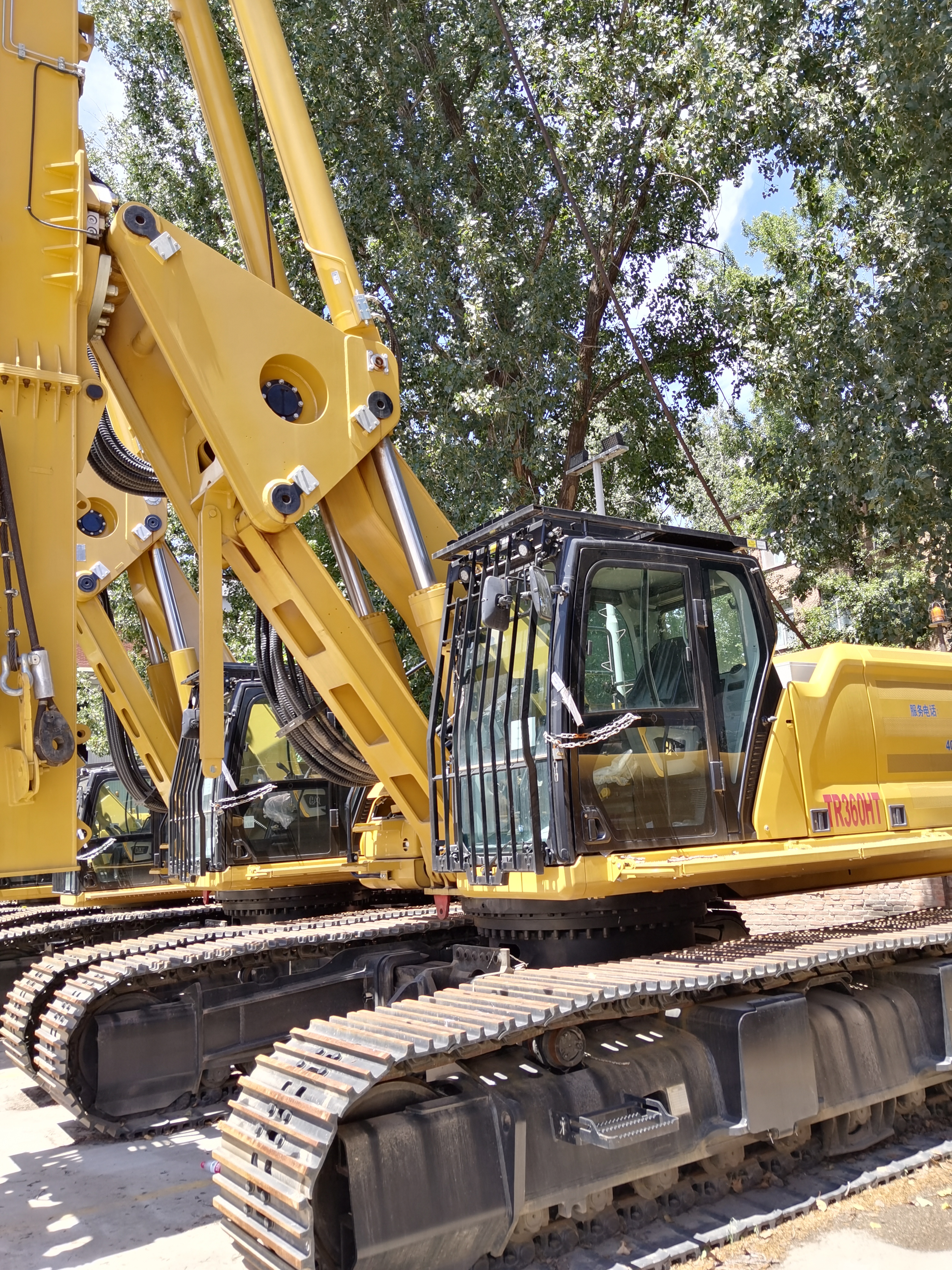

Professional Equipment Construction Works Fully Hydraulic System CAT Chassis Piling Rig Soilmec Images
