TR200D Rotary drilling rigs for max torque 200kn.m rotating speed 8-27rpm
TR Series rotary drilling rigs are designed with latest advanced technology composed of advantages based on Caterpillar undercarriage, which are the most versatile and used for deep foundation drilling, such as construction of railway, highway, bridge and skyscraper.Max depths of piling can reach more than110m and Max Dia. can reach 3.5 m The rotary drilling rigs can be specially equipped with telescopic friction & interlocking Kelly bar, and casing oscillator for suiting the following applications: Cased bore piles with casing driven adapter through rotary head or optionally by casing oscillator powered by the base carrier itself; Deep bored piles stabilized by drilling fluid or dry hole; Soil Displacement Piling System.
| TR200 Technical Parameters |
| | Euro Standards | U.S Standards |
| Max drilling depth | 60m | 197 ft |
| Max hole diameter | 1800mm | 71in |
| Engine model | CAT C-7 | CAT C-7 |
| Rated power | 187KW | 251HP |
| Max torque | 200kN.m | 147460lb-ft |
| Rotating speed | 8~27rpm | 8~27rpm |
| Max crowd force of cylinder | 150kN | 33720lbf |
| Max extraction force of cylinder | 190kN | 42712lbf |
| Max stroke of crowd cylinder | 4500mm | 177in |
| Max pulling force of main winch | 170kN | 38216lbf |
| Max pulling speed of main winch | 78m/min | 256ft/min |
| Wire line of main winch | Φ26mm | Φ1.0in |
| Max pulling force of auxiliary winch | 80kN | 17984lbf |
| Undercarriage | CAT 329D | CAT 329D |
| Track shoe width | 800mm | 31in |
| Width of crawler | 3000-4300mm | 118-169in |
| Whole machine weight | 55.5T | 55.5T |
Main Features:

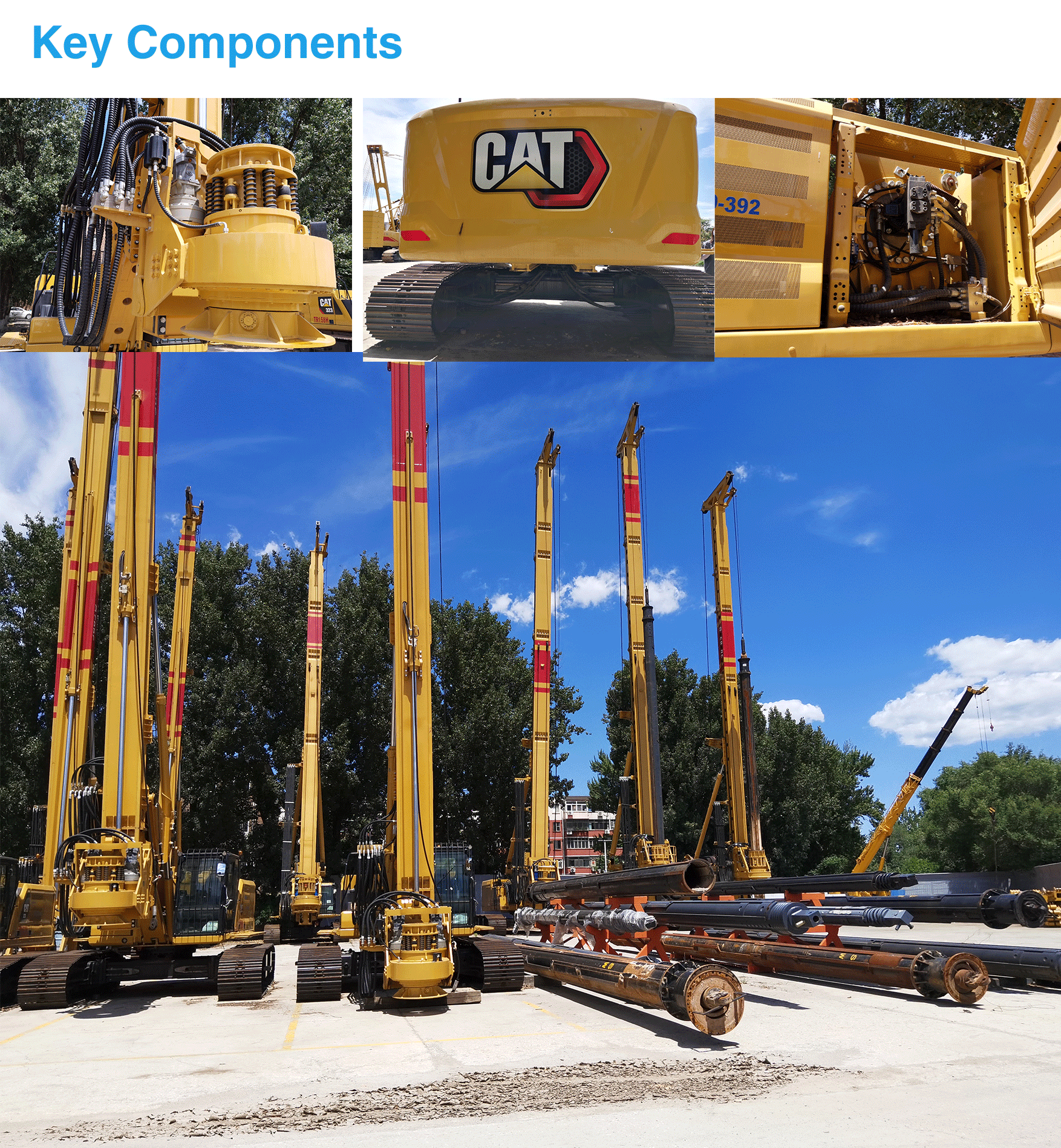

- - High stability and quality original caterpillar base
- - Compact powerful rotary head
- - Emergency mode of operation for engine
- - PCL controller for all electrically actuated functions, colorful LCD display
- - Mast support unit
- - Original Patented driving structure of double motors and double reduces
- - Controlled free-fall main and auxiliary winch
- - Innovative enhanced electro-hydraulic proportional system
- - Ease of transport and quickly assembly
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer, and our factory mainly produces series hydraulic rotary rig, hydraulic pile breaker, exploration equipment, core drilling rig and related piling equipment etc.
Q: What kind of product certification do you have?
A: Our series products have passed ISO9001, Gost and CE certifications.
We strictly perform quality inspection process before shipment and supply the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have professional service team to support our clients . If you request, we can dispatch our engineer to your worksite to provide training for your staff. For the chassis, eg CAT chassis, our clients can enjoy global after service support.
Q: How about the warranty policy ?
A: Most of our products support 1 year or 2000 working hours warranty, please consult customer service for specific products
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process before shipment, and the clients also authorize SGS to inspect our machine.
