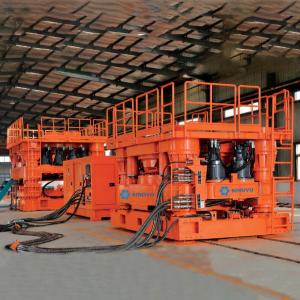

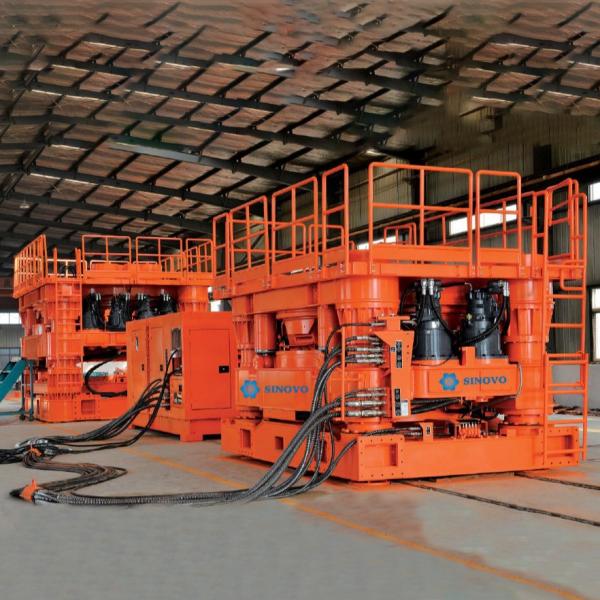

TR1305H Diameter 600mm Casing Rotator For Foundation Pile
The TR1305H casing rotator is a new type drill with the integration of the full hydraulic power and transmission, and the combination control of machine, power and fluid. It is a new, environmentally-friendly and highly efficient drilling technology. In recent years, it is widely adopted in the projects such as the constructions of urban subway, articulation pile of deep foundation pit enclosure, clearance of waste piles (underground obstructions ), high-speed rail, road and bridge, and urban construction piles, as well as the reinforcement of reservoir dam.
The successful research of this brand new process method has realized the possibilities for the construction workers to conduct the construction of casing pipe, displacement pile, and underground continuous wall, as well as the possibilities for the pipe-jacking and shield tunnel to pass through the various pile foundations without barriers, when the obstructions, such as the gravel and boulder formation, cave formation, thick quicksand stratum, strong necking down formation, various pile foundation and steel reinforced concrete structure, are not removed.
The construction method of casing rotator has successfully completed construction missions of more than 5000 projects at places of Singapore, Japan, Hongkong District, Shanghai, Hangzhou, Beijing and Tianjin.
Technical parameters
| TR1305H |
| Working device | Diameter of drill hole | mm | Φ600-Φ1300 |
| Rotary torque | KN.m | 1400/825/466 Instantaneous 1583 |
| Rotary speed | rpm | 1.6/2.7/4.8 |
| Lower pressure of sleeve | KN | Max.540 |
| Pulling force of sleeve | KN | 2440 Instantaneous 2690 |
| Pressure-pulling stroke | mm | 500 |
| Weight | ton | 25 |
| Hydraulic power station | Engine model | | Cummins QSB6.7-C260 |
| Engine Power | Kw/rpm | 201/2000 |
| Fuel consumption of engine | g/kwh | 222 |
| Weight | ton | 8 |
| Control mode | | Wired remote control/ Wireless remote control |
The advantages of adopting the casing rotator for construction
1) No noise, no vibration, and high safety;
2) Without mud, clean working surface, good environmental friendliness, avoiding the possibility for mud to enter the concrete, high pile quality, enhancing the bond stress of concrete to the steel bar;
3) During construction drilling, the characteristics of stratum and rock can be directly distinguished;
4) The drilling speed is fast and reaches about 14m/h for the general soil layer;
5) The drilling depth is large and reaches about 80m according to the situation of soil layer;
6) The hole forming verticality is easy to master, which can be accurate to 1/500;
7) No hole collapse will be caused, and the hole forming quality is high.
8) The hole forming diameter is standard, with little filling factor. Being compared with other hole forming methods, it can save a lot of concrete usage;
9) The hole clearing is thorough and fast. The drilling mud at the hole bottom can be clear to about 3.0cm.
Packaging & Delivery
- Packaging Details
- Standard packing or as to clients requirements
- Lead Time :
-
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 30 | To be negotiated |
-
