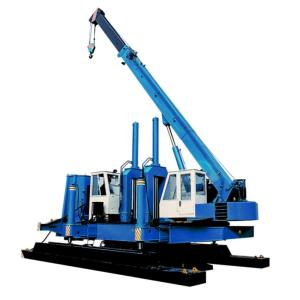

1202 Ton Square Pile VY1200A Hydraulic Static Pile Driver
1202 ton square pile VY1200A hydraulic statics pile driver is a new environmentally friendly pile foundation construction equipment with a number of national patents. It has the features of no pollution, no noise, and fast pile driving, high quality pile. 1202 ton square pile VY1200A hydraulic statics pile driver is represent the future development tendency of piling machinery. VY series hydraulic static pile driver has more than 10 varieties, the pressure capacity from 60 tons to 1200 tons. Using high quality materials and components, adopting the unique hydraulic piling design and processing methods ensures the clean and highly reliability of hydraulic system.
Main features of VY1200A hydraulic statics pile driver
Sinovo h1202 ton square pile VY1200A hydraulic statics pile driver enjoys the common features of pile driver such as high efficiency, energy saving, environmental-friendly and so on. Besides, we have more unique technique characteristics as following:
1. Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the plie, avoid damaging the pile.
2. Unique design of side/corner piling structure, improves the capacity of side/corner piling, the pressure force of side/corner piling up to 60%-70% of main piling. The performance is much better than hanging side/corner piling system.
3. Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil, ensuring high reliability of clamping pile and high quality of construction.
4. Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure, greatly improving the safety of operation.
5. Unique walking mechanisim with lubrication cup design could realize durable lubrication so as to extend service life of rail wheel.
6. Constant & high flow power hydraulic system design ensures high piling efficiency.
Main Technical Parameter Of VY1200A hydraulic statics pile driver
| Model Parameter | VY1200A |
| Max.piling pressure(tf) | 1200 |
Max.piling
speed(m/min) | Max | 7.54 |
| Min | 0.56 |
| Piling stroke(m) | 1.7 |
Move stroke(m) | Longitudinal Pace | 3.6 |
| Horizontal Pace | 0.7 |
| Slewing angle(°) | 8 |
| Rise stroke(mm) | 1100 |
Pile type (mm) | Square pile | F400-F700 |
| Round pile | Ф400-Ф800 |
| Min.Side Pile Distance(mm) | 1700 |
| Min.Corner Pile Distance(mm) | 1950 |
Crane | Max.hoist weight(t) | 30 |
| Max.pile length(m) | 16 |
Power(kW) | Main engine | 135 |
| Crane engine | 45 |
Overall
dimension(mm) | Work length | 16000 |
| Work width | 9430 |
| Transportation height | 3390 |
| Total weight(t) | 120 |
FAQ:
Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one. And
weprovide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Packaging & Delivery
- Packaging Details
- Standard export package
- Port
- Shanghai Tianjin
- Lead Time :
-
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 7 | To be negotiated |
