Underground Piling Machine TG40 70m Depth Diaphragm Wall Grab
Diaphragm Wall Equipments
Diaphragm Wall Grabs are underground structural elements principally used for retention systems and permanent foundation walls. Our TG series hydraulic diaphragm wall grabs are ideal forpit strutting, dam anti-seepage, excavation support, dock cofferdam and foundation element, and are also suitable for the construction of square piles. It is one of the most efficient and versatile construction machines on the market.
Technical parameters
| Technical parameters |
| | Euro Standards | U.S Standards |
| Width of trench | 600-1200mm | 24-47in |
| Depth of trench | 70m | 230ft |
| Max. pull force | 400kN | 89924 lbf |
| Volume of grab bucker | 0.8-1.7 m³ | 0.8-1.7 m³ |
| Undercarriage Model | CAT336D | CAT336D |
| Engine power | 261kW | 350hp |
| Pull force of main winch (The first layer) | 200kN | 44962lbf |
| Extendable undercarriage (mm) | 800mm | 32 in |
| Track shoe width | 3000-4300mm | 118-170in |
| System Pressure | 35Mpa | 5076psi |
Main feature:
1. A conventional underground continuous operation trenching equipment
2. Easy for operation and maintenance.
3. Operated by using the crawler crane,Multifunction & high efficience.
4. High reliable & stable quality.
5. Low noise & low emission.
6. Equipped with our grab bucket, single bucket capacity up to 1.7 m³. The groove width is 600-1200 mm, the maximum groove depth can extent to 70 meters.
Supply Ability
- Supply Ability:
- 30 Set/Sets per Month
Packaging & Delivery
- Packaging Details
- Bubble film packaging.
- Port
- Shanghai, Tianjing
- Lead Time :
-
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 20 | To be negotiated |
FAQ:
Q1: What's the type of this diaphragm wall grab?
This is mechanical diaphragm wall grab
Q2: Which machine does this diaphragm wall grab combine to use?
Crawler crane.
Product Tags:
|
|

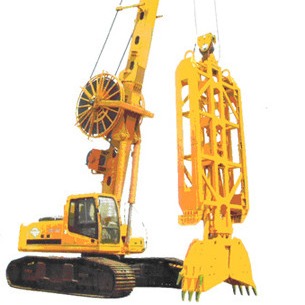

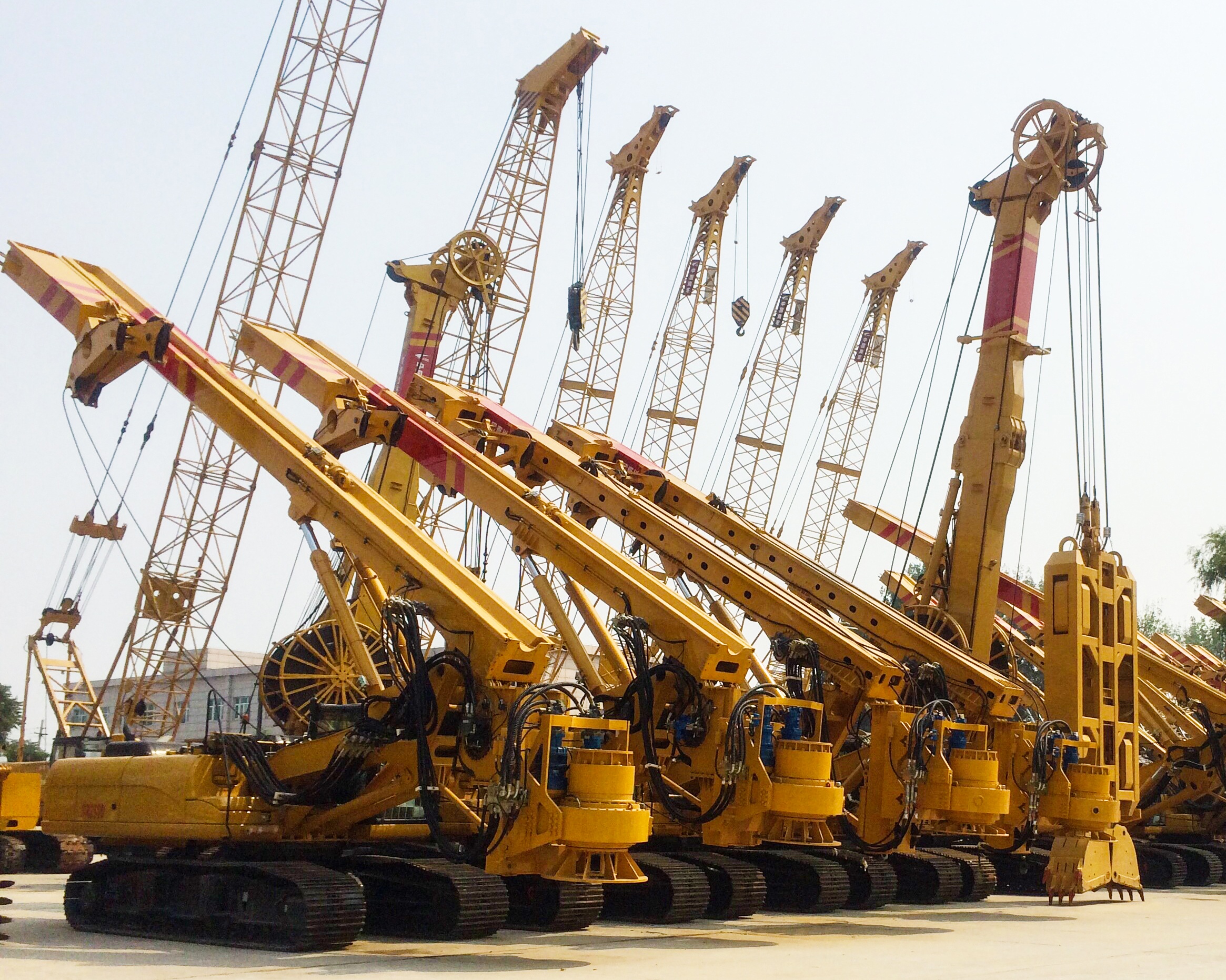

Underground Piling Machine 70m 261kw Hydraulic Diaphragm Wall Grab Images
|
