Water well and Core Drilling rig XYT-200 Depth 280m Max Drilling Diameter 380mm trailer or crawler type

Core Drilling Rig XYT-200 drilling depth 280m max drilling diameter 380mm

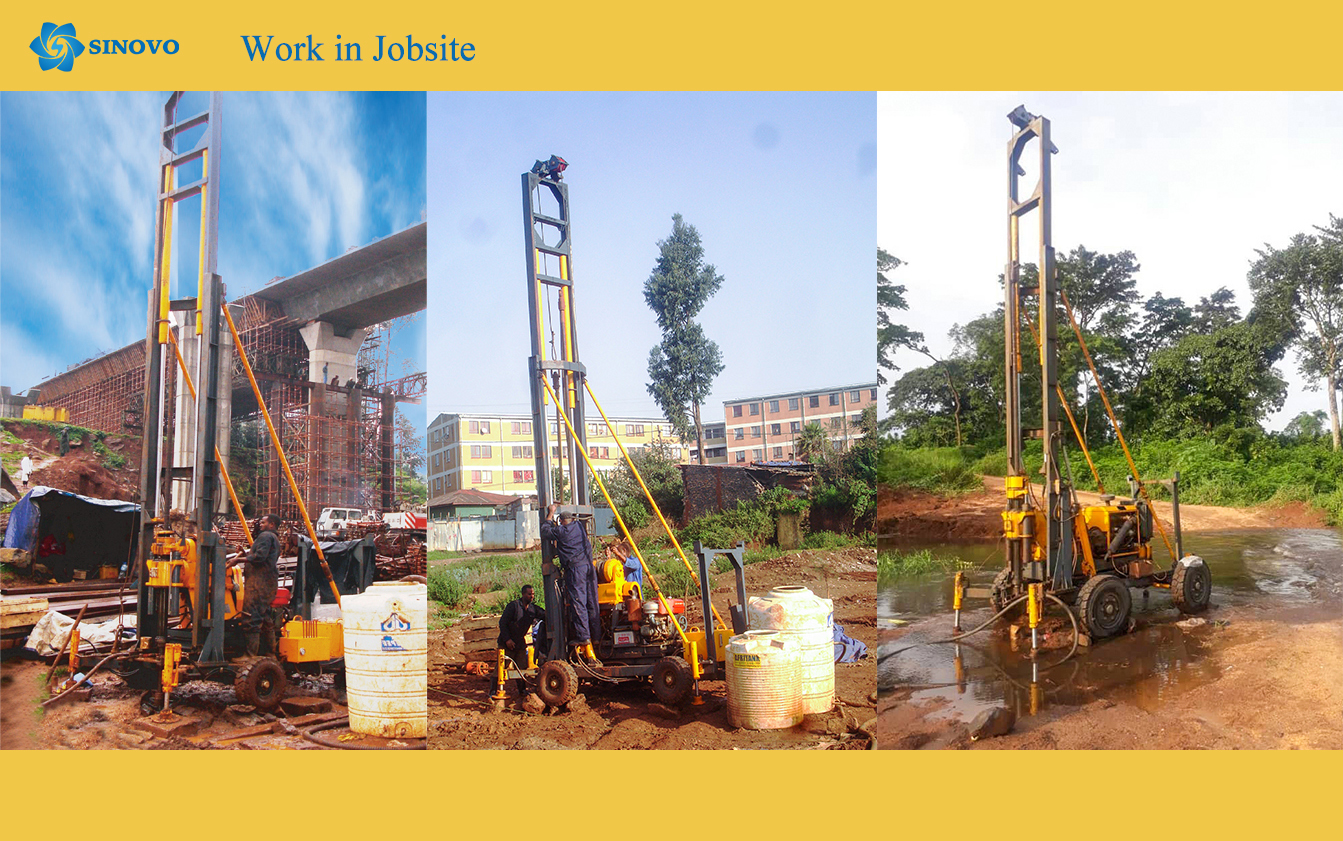

XYT-200 core drilling rig is mounted on trailer with four hydraulic jacks, self-erect mast by hydraulic control, it is used for core drilling,soil investigation, small water well and diamond bit drilling with wire line coring technique.

Main Features

• The rig is in higher rotational speed and rational range of rotational speed; large torque in low speed.
• The drill is suitable in the mountain area because of light weight for easy transport and convenient disassembly (to be disassembled into nine parts).
• With compact structure and reasonable layout, and all exposed, non overlapped components, it is easier for maintenance and repair.
• It is convenient for you to treat trouble with two reverse speeds. With low center of gravity, the rig is reliable and stable in high speed drilling.
• The operation levers are concentrated, so the operations are reliable and convenient.
• Fitted with meters, the circumstances can be controlled easily in hole.
• The transmission is separately driven for drill rig and mud pump; it is easier for the location arrangement with less space occupying.

Specification:

core drilling machine

core drilling equipment
